Description

Multi-Functional Lawn Mower — Professional Lawn Maintenance System

One machine. Seven work kits. Complete lawn care.

The Multi-Functional Lawn Mower is a professional-grade maintenance system designed for turf that demands precision. Combining mowing, combing, raking, root cutting, piercing, and rolling into a single compact unit, it replaces a whole shed full of equipment — and delivers results that stand up to the most demanding grounds.

Perfect For

• Football fields

• Golf courses

• Large lawns

• School grounds

Key Functions

• Grass cutting — clean, uniform mowing

• Combing — lifts and straightens matted turf

• Raking — removes debris and surface thatch

• Heel / root cutting — cuts through stubborn roots and compacted layers

• Piercing — aerates the soil for healthier root growth

• Rolling — smooths and firms the surface for a consistent finish

Why Choose This Machine

• Strong power — handles thick grass and heavy-duty turf work with ease

• Two mowing widths available — choose the size that fits your operation

• Thick-walled anti-roll frame — built tough for years of reliable service

• Easy to operate — intuitive controls, minimal training required

• Compact structure — maneuverable in tight areas, easy to store

• Guaranteed quality — dependable performance you can count on

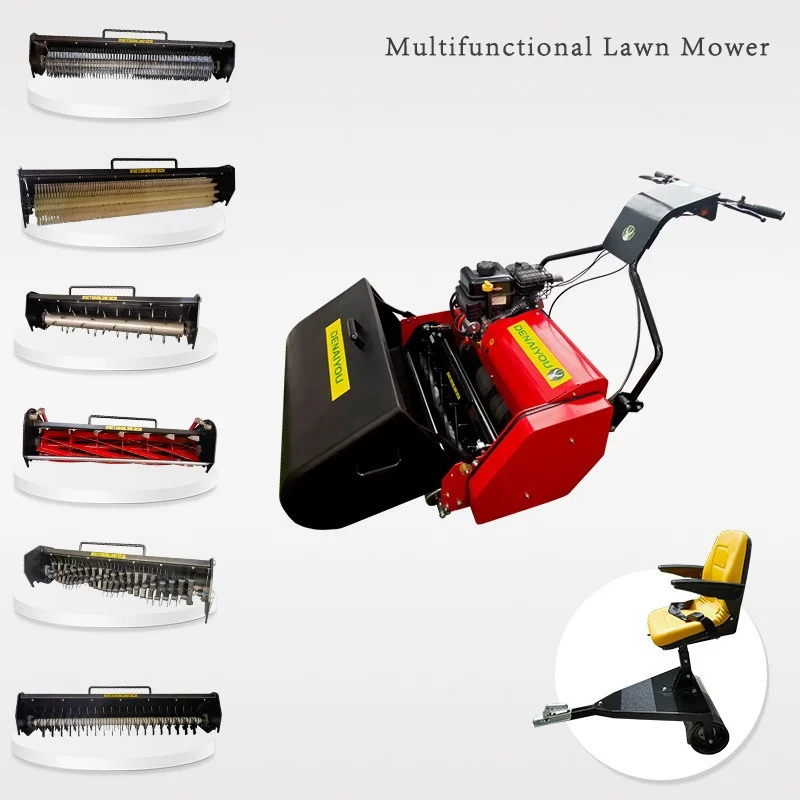

Seven Work Kits Included

1. 8-Blade Rolling Cutter

Made from high-strength alloy steel for superior wear resistance. With eight blades, each cut is finer and more uniform than standard cutters, giving your turf a cleaner, more professional finish. Every rolling cutter undergoes a dynamic balance test before leaving the factory, ensuring smooth, vibration-free operation from day one.

Maintenance note: Regular maintenance and sharpening are required during use to maintain optimal performance.

2. Lawn Rake

Removes the dead grass layer and surface debris from the lawn. It organizes the texture of the grass, levels the ground, prevents disease, and promotes growth.

3. Lawn Combing Device

Removes the dead grass layer, making the grass grow upright and easier for the mower to trim. It controls flat weeds and creeping stems. The 304 stainless steel blades are spaced 17 mm apart.

Important: Take care not to touch the soil, as this can damage the lawn. Before use, please level any uneven areas of the lawn.

4. Lawn Roller Brush

Before mowing, brushes the grass upright to achieve sharper and more uniform trimming. Removes earthworms, mounds, dew, and surface debris.

Note: The brush head should be positioned about 13 mm below the top.

5. Puncture Roll

Creates a surface depth of 20–30 mm with minimal soil disturbance — fast and simple low-level ventilation.

6. Lawn Combiner (Sitting Operation)

Extended working time and improved mowing effect. The innovative steering system ensures the combiner follows the lawn mower, improving efficiency and saving time and cost.

7. Lawn Roller Brush with Tungsten Steel Blade Heads

Aims to remove thick layers of dirt such as stems, dry grass, leaves, plant creeping stems, and weeds. Improves air and water penetration, with a maximum penetration depth of 6 mm. Promotes grass thickening, reduces lawn diseases, and achieves the best effect after lawn ventilation — helping the turf better absorb nutrients, air, and water.

Note: There is some damage to the lawn in the early stage, but a dense and healthy lawn will grow after about one month.



Product Specifications

Specification	DL80A (31.5″)	DL100A (39.4″)	EDL80A (31.5″)	EDL100A (39.4″)
Power Source	Briggs & Stratton 6.5 HP	Briggs & Stratton 6.5 HP	72V Electric	72V Electric
Mowing Width	800 mm	1000 mm	800 mm	1000 mm
Mowing Height	8–60 mm	8–60 mm	8–60 mm	8–60 mm
Hob Speed	8-blade hob, 150 cuts/min	8-blade hob, 150 cuts/min	8-blade hob, 150 cuts/min	8-blade hob, 150 cuts/min
Handle	Adjustable, with shock-proof device	Adjustable, with shock-proof device	Adjustable, with shock-proof device	Adjustable, with shock-proof device
Dimensions (L×W×H)	1600 × 1020 × 1050 mm	1600 × 1220 × 1050 mm	1600 × 1020 × 1050 mm	1600 × 1220 × 1050 mm
Weight (Main Unit)	193 kg	217 kg	298 kg	322 kg
Hob Weight	38.5 kg	45.5 kg	38.5 kg	38.5 kg
Standard Configuration	Three-section rubber roller, anti-aging plastic grass collecting box	Three-section rubber roller, anti-aging plastic grass collecting box	Three-section rubber roller, anti-aging plastic grass collecting box	Three-section rubber roller, anti-aging plastic grass collecting box

Warranty

• Warranty period: 12 months from date of delivery .

• Covered: Manufacturing defects in materials and workmanship, including engine, motor, frame, and drive components.

• Not covered: Normal wear parts (blades, belts, filters, spark plugs, brush heads), damage from misuse, accident, unauthorized repair, or lack of routine maintenance.

• Blade note: Rolling cutters require periodic sharpening and maintenance — this is considered normal wear and is not covered under warranty.

• Claims: Contact info@bsocool.com with your order number and photos/video of the issue. We will repair, replace, or refund at our discretion.



  Shipping

  • Lead time: 5-10 business days after order confirmation (may vary for bulk orders).

  • Shipping methods: Sea freight+ local delivery.

  • Shipping cost: Calculated at checkout based on destination and order size.

  • Packaging: Securely crated for transport; [assembly required? yes].

  • Tracking: Tracking number provided once dispatched.

  • International orders: Customs duties, taxes, and import fees are the buyer’s responsibility unless stated otherwise.

  • Delivery areas: We ship to most of the countries in the world, Contact us for with your address.


    Order yours today and give your turf the professional care it deserves.
